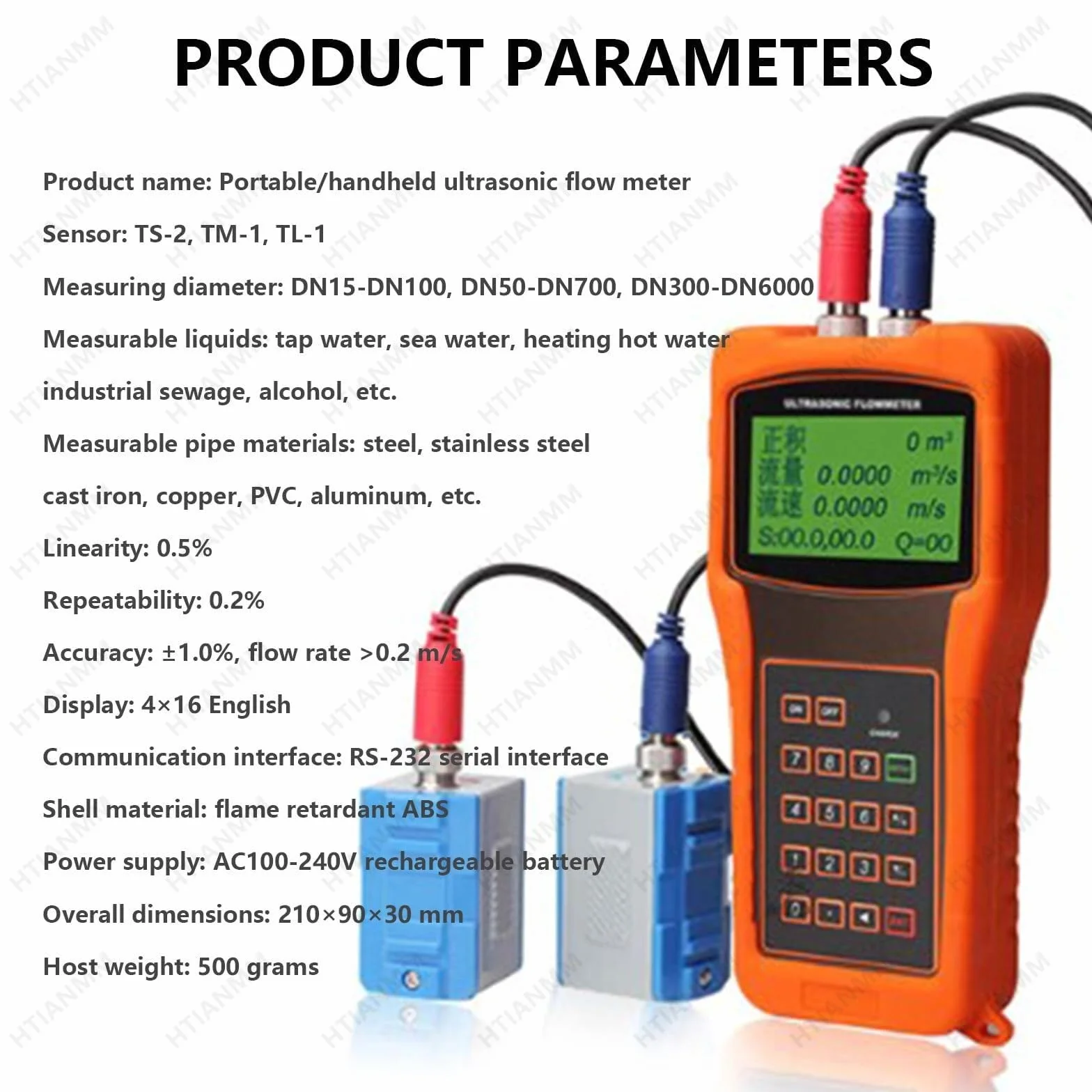

Ultrasonic Flow Meter Liquid Flowmeter TUF-2000H for Pipe Diameter DN15-DN6000mm LCD Display Handheld Ultrasonic Flow Meter(2)

- TUF-2000H handheld ultrasonic flow meter realizes non-contact measurement of liquid flow. Install the sensor on the outer wall of the pipe to complete the flow measurement. No need to destroy pipelines or stop production.

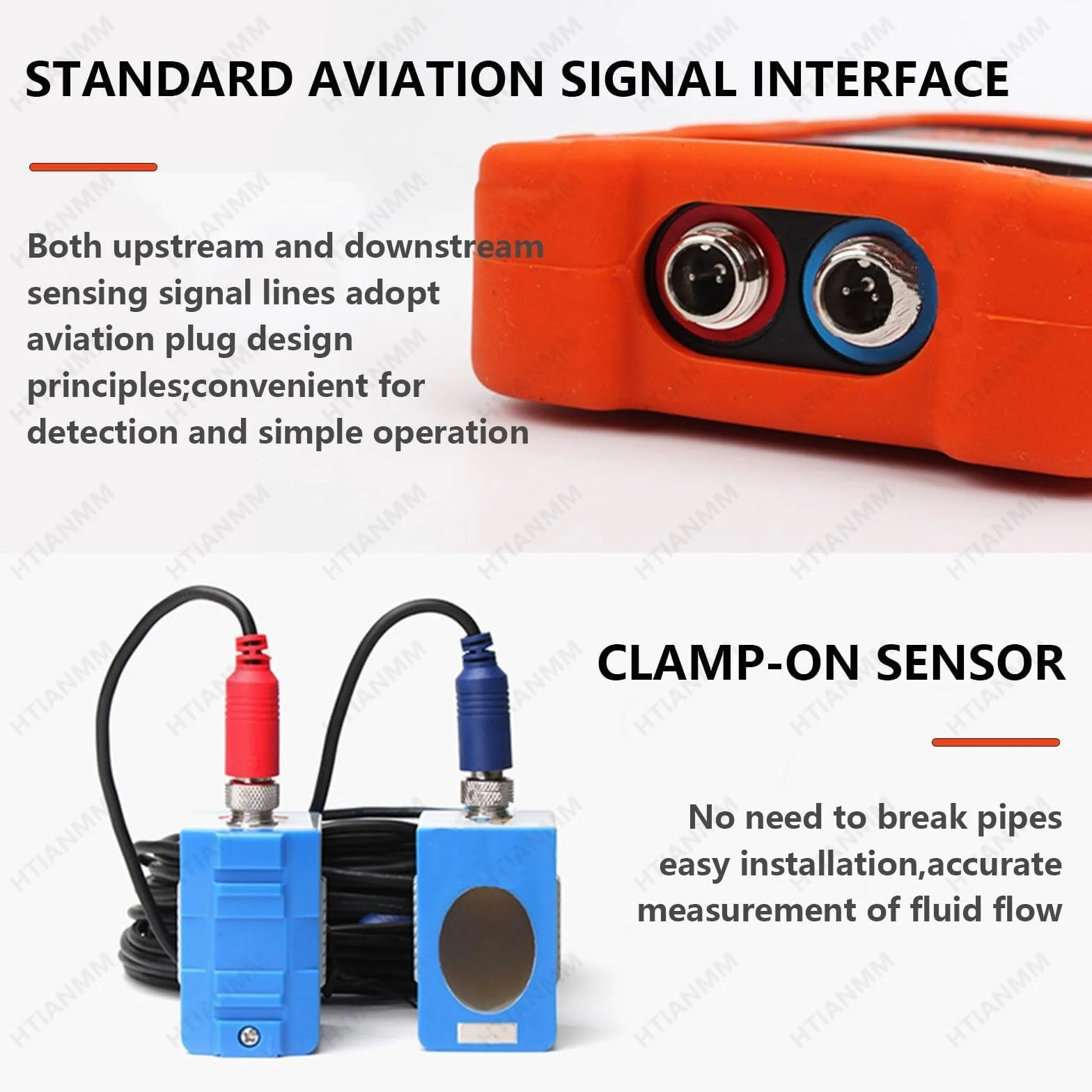

- High measurement accuracy, liquid water flow control meter, measurement accuracy is better than plus or minus 1%, linearity and repeatability are 0.5%±0.2%. Non-intrusive, clamp-on sensor with no pressure drop or pipe disturbance.

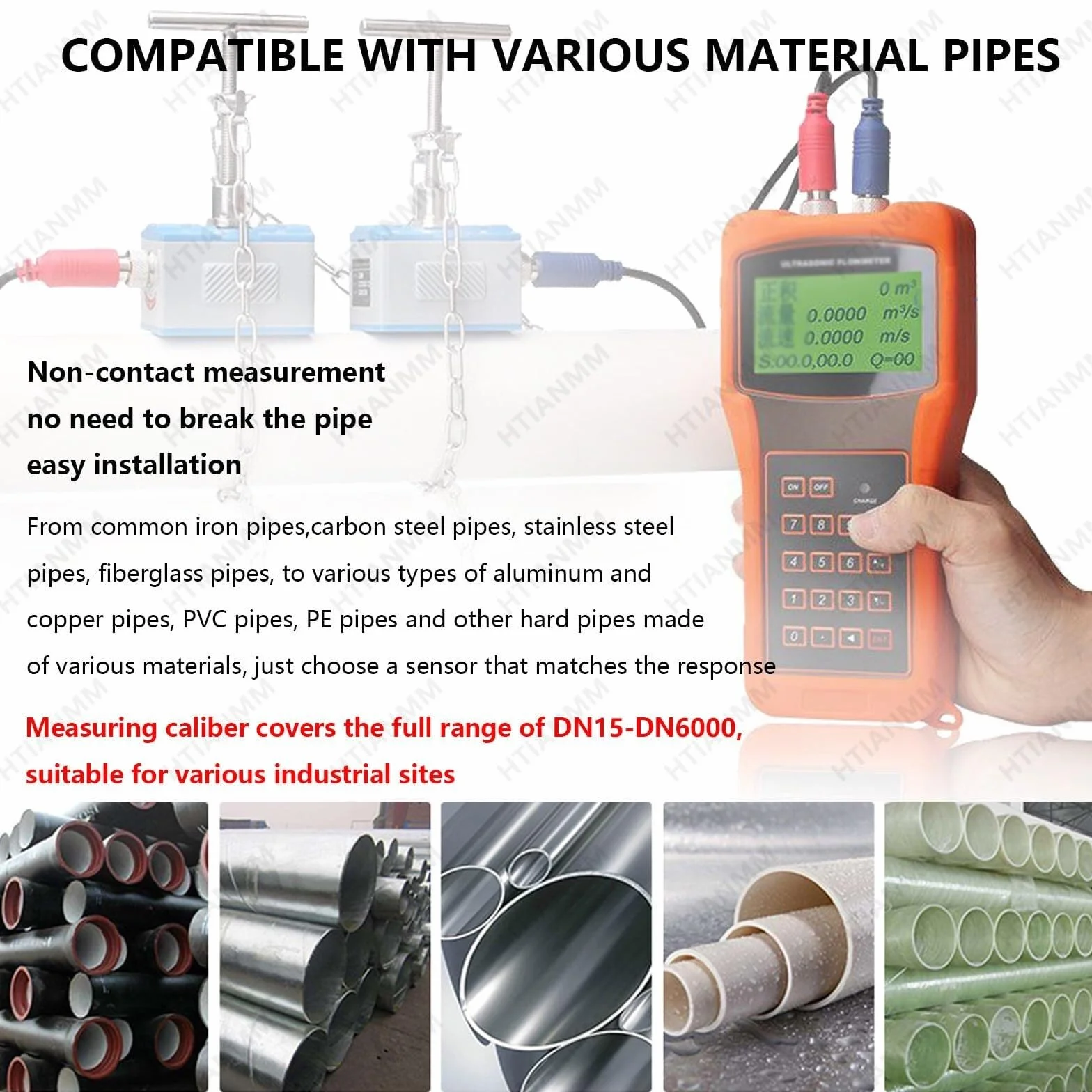

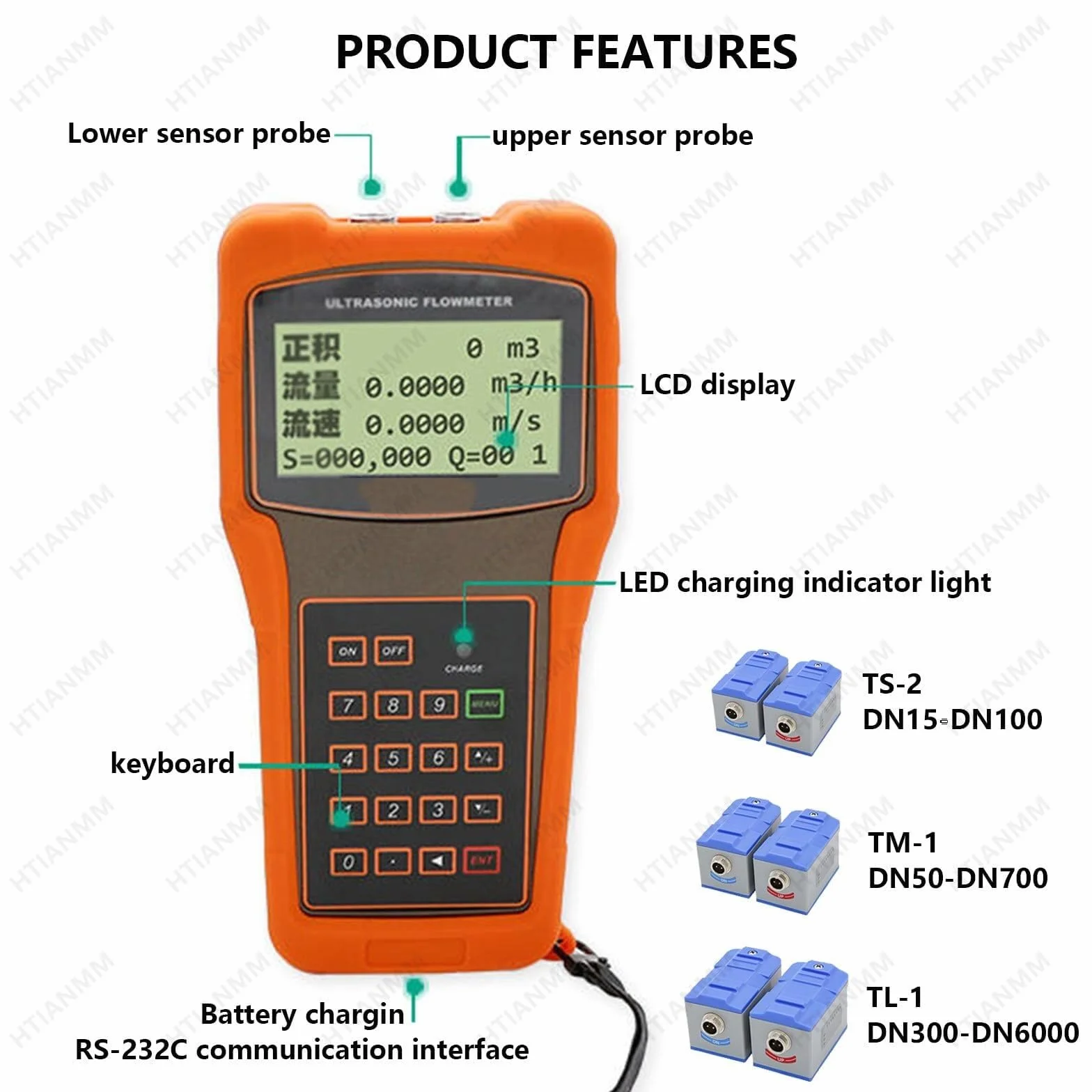

- Wide measuring range, the liquid flow meter adopts three different types of sensors: TS-2/ TM-1/ TL-1, which can realize pipeline flow measurement with diameters from DN15 to DN6000mm. Suitable for measuring pipes of various sizes and materials.

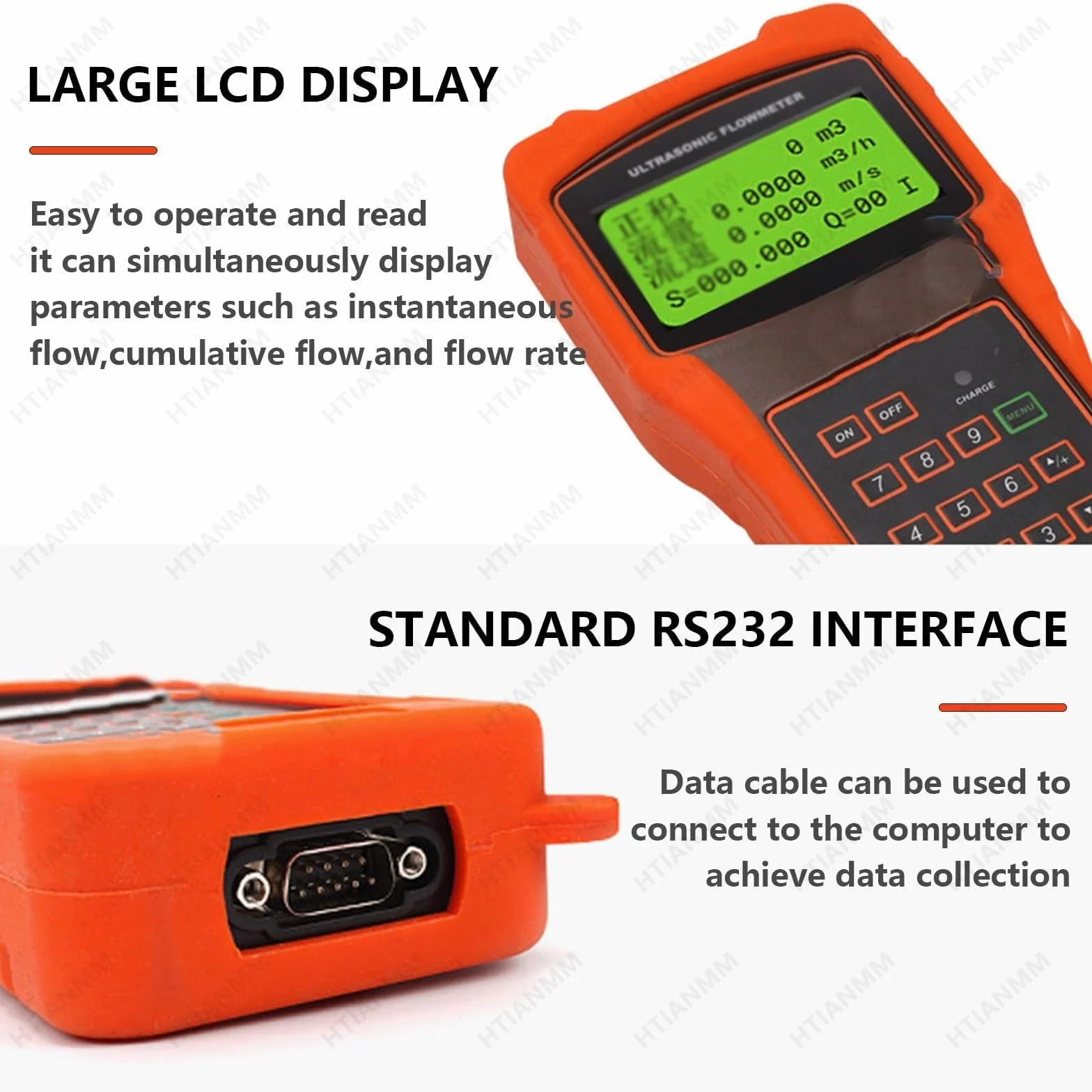

- Data protection, built-in data logger, can record 2000 lines of measurement data; large LCD screen, displays instantaneous flow, cumulative flow (positive, negative, net), flow rate, working status, etc.; built-in rechargeable battery, can work continuously for 12 hours Above, it is more convenient to use.
- Small size and light weight, volume: 210×90×30 mm, weight only 0.5 kg. Portable digital ultrasonic flow meters are widely used in environmental protection, petrochemical, metallurgy, papermaking, food, pharmaceutical and other industries. It is an essential tool for water flow detection.
