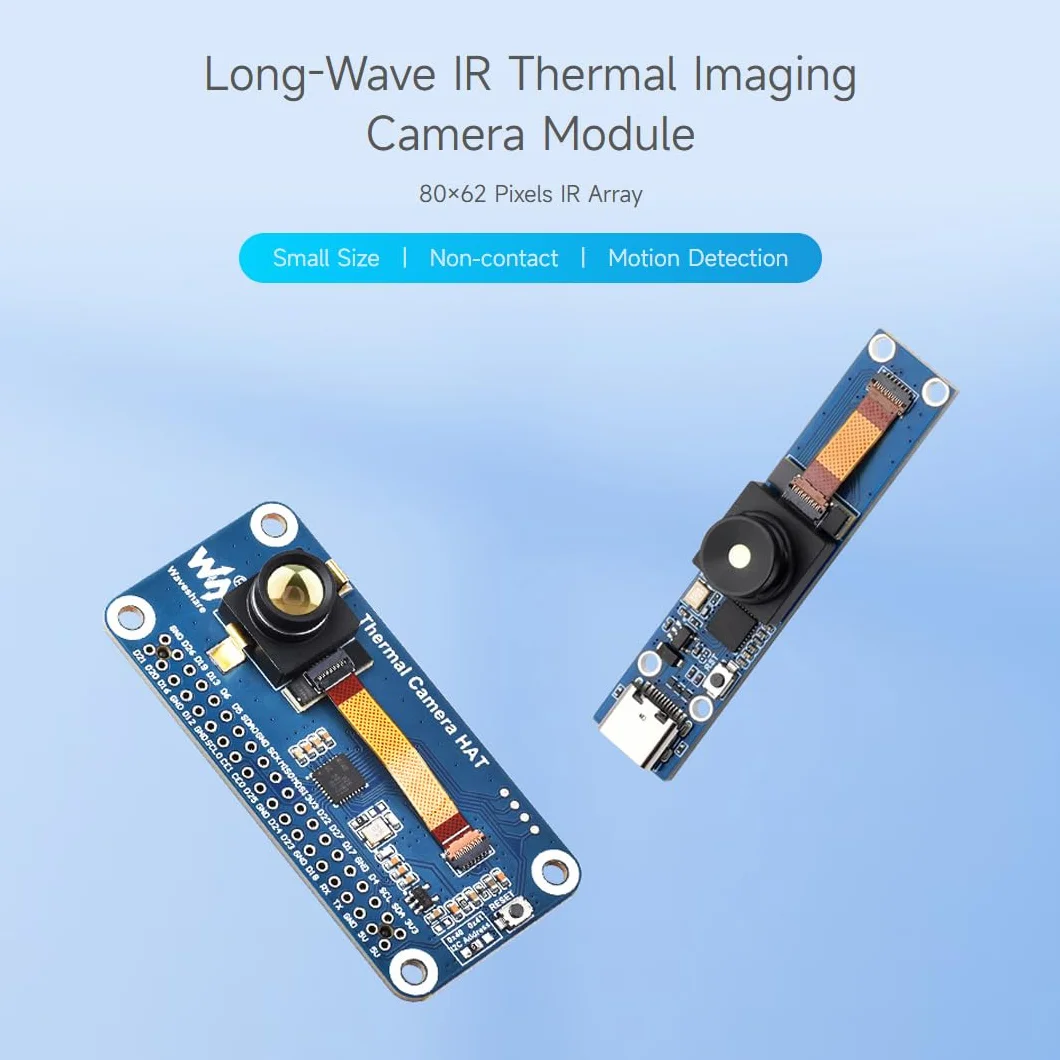

Waveshare Long-Wave IR Thermal Imaging Camera Module, 80×62 Pixels, 45°FOV, Available with 40PIN GPIO Header

Marka: Waveshare
Gniazdo CPU: LGA 775
Zgodne urządzenia: Raspberry Pi
Technologia pamięci RAM: DDR2
Kompatybilne procesory: Broadcom BCM2835, Broadcom BCM2836, Broadcom BCM2837, Broadcom BCM2711
Typ chipsetu: Intel H61 Express
Częstotliwość taktowania pamięci: 1 MHz
Platforma: Brak systemu operacyjnego
Nazwa modelu: Thermal Camera HAT
Typ głównego złącza zasilania: 20 pin

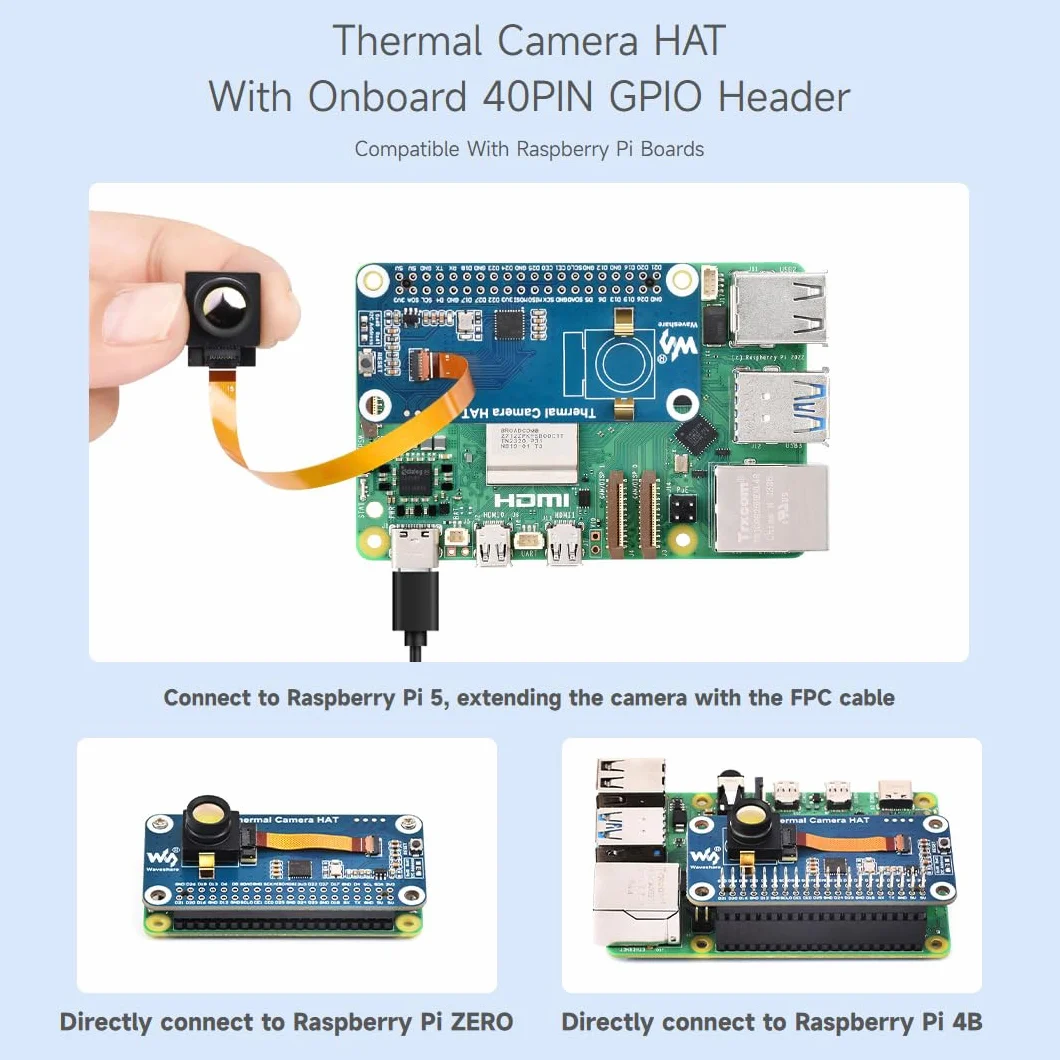

- Thermal Camera HAT with Onboard 40PIN GPIO Header,Compatible With Raspberry Pi Boards

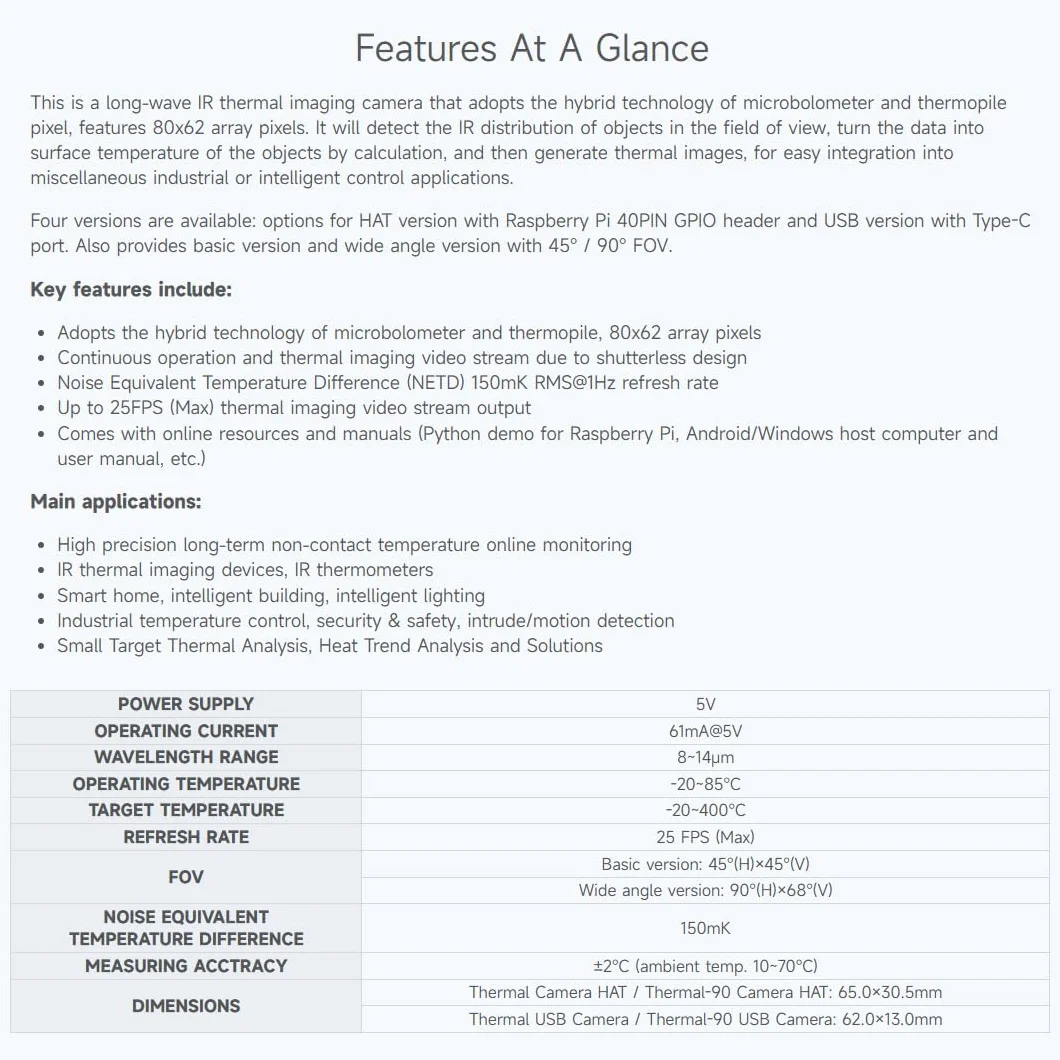

- This is a long-wave IR thermal imaging camera that adopts the hybrid technology of microbolometer and thermopile pixel, features 80x62 array pixels. It will detect the IR distribution of objects in the field of view, turn the data into surface temperature of the objects by calculation, and then generate thermal images, for easy integration into miscellaneous industrial or intelligent control applications.
- Adopts the hybrid technology of microbolometer and thermopile, 80x62 array pixels Continuous operation and thermal imaging video stream due to shutterless design Noise Equivalent Temperature Difference (NETD) 150mK RMS@1Hz refresh rate Up to 25FPS (Max) thermal imaging video stream output
- Main applications: High precision long-term non-contact temperature online monitoring IR thermal imaging devices, IR thermometers Smart home, intelligent building, intelligent lighting Industrial temperature control, security & safety, intrude/motion detection Small Target Thermal Analysis, Heat Trend Analysis and Solutions
- Comes with online resources and manuals (Python demo for Raspberry Pi, Android/Windows host computer and user manual, etc.)
